Computing System： | |
|---|---|

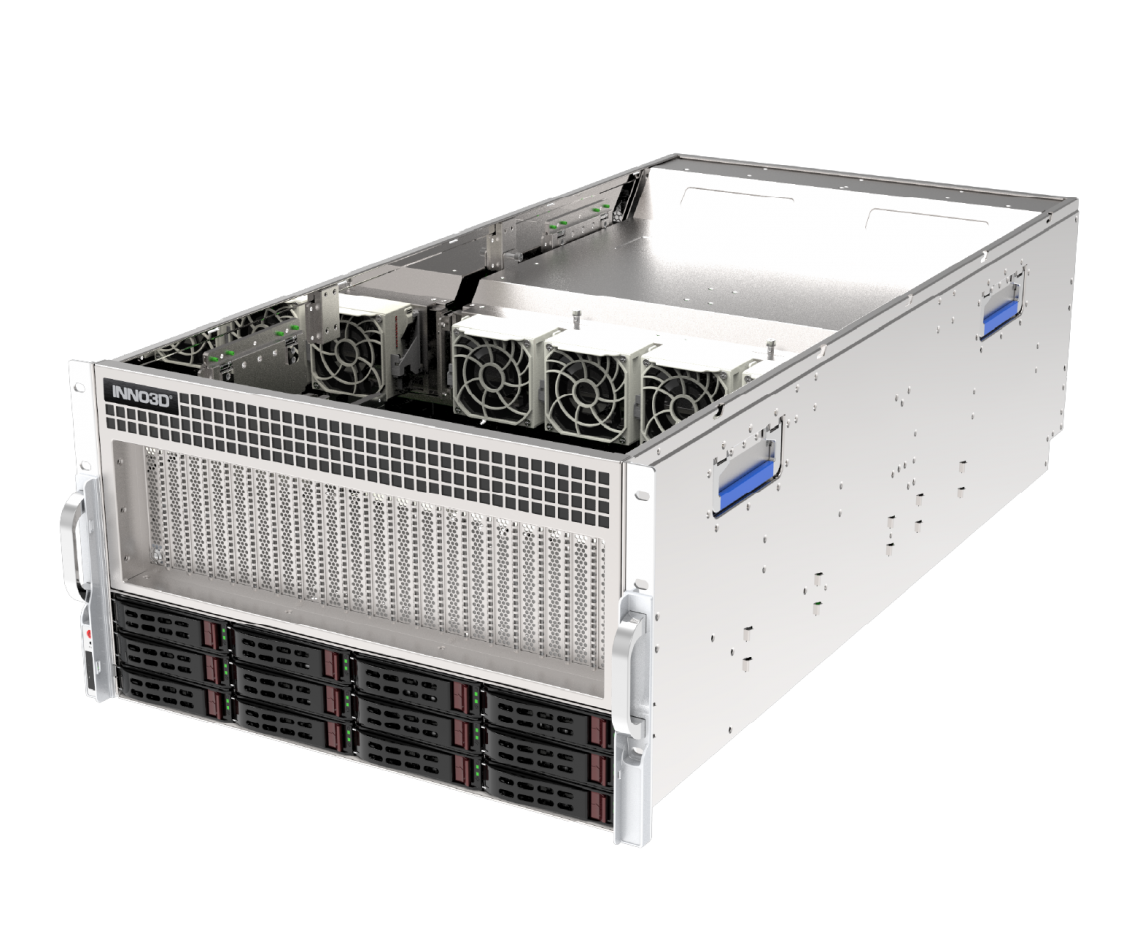

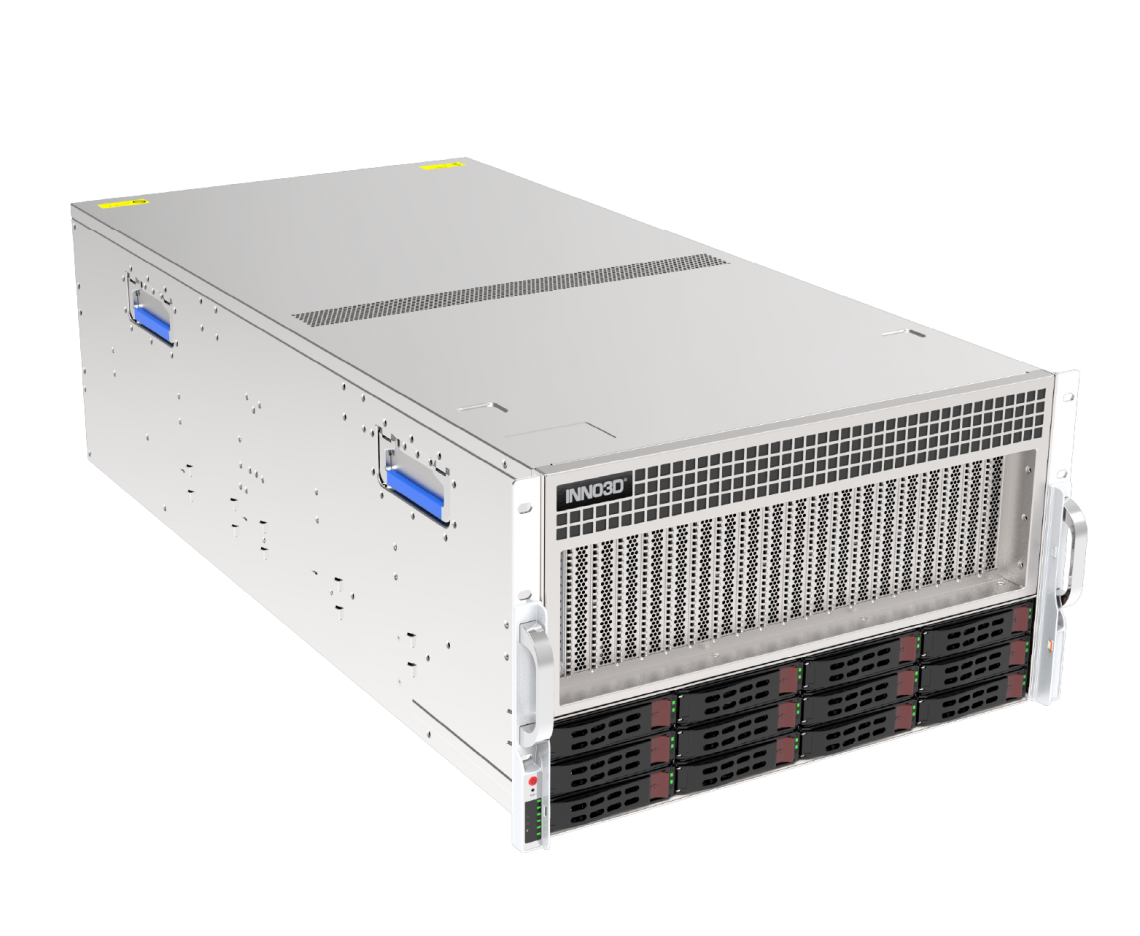

Reference Number | INNO3D 6U GPU Server |
| Form Factor 外觀規格 | 6U Rackmount |
CPU 中央處理器 | Intel® Emeralds Rapids-SP Intel® Xeon®Platinum / Gold / Silver & Bronze processor support |
Socket 插槽 | 2 x LGA 4677 (Socket E) |
Chipset 晶片組 | Intel® C741 |
Memory 記憶體 | 8-channel (2DPC) DDR5 RDIMM / MRDIMM per CPU DDR5 5600 - 1DPC / DDR5 4400 - 2DPC 32 x DIMMs total |
Graphics | |
Video | Integrated Aspeed® AST2600 1920x1200@60Hz, DDR4 SDRAM |
Storage： | |
Storage 儲存 | Internal: 1 x NVMe PCIe Gen 3 x1 M.2 Slot (M-Key 22110 / 2280) Drive Bay: 8 x 3.5/2.5-inch SATA-3 6Gbps HDD/SDD + 4 x MVMe Gen4 SSD Drive Bays 1 x M.2 MVMe port (2280/22110, M-key) - Internal slot |
RAID | Intel® SATA RAID 0/1/10/5 - VROC Key Support |
| I/O Ports： | |
| LAN 區域網路 | 1 x Dual 25GbE OCP 3.0 NIC (optional) 1 x 1GbE management port (BMC) |
| Expansion Slots 擴充槽 | 8 x PCIe Gen 5 x 16 Slot - (Full Height Double Width Slot) (* Direct CPU drive without PCIe Switch) |

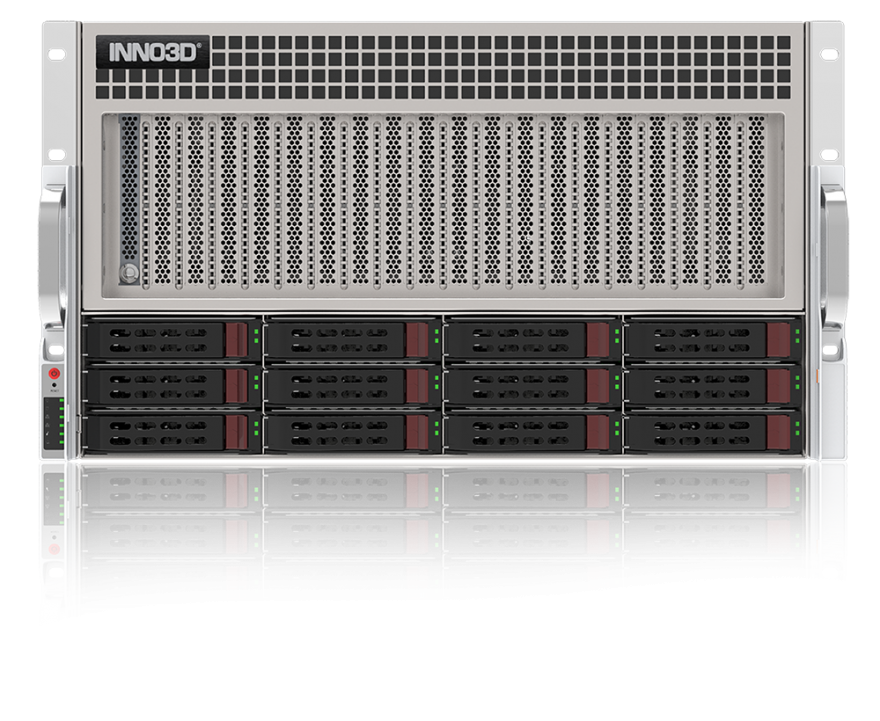

| Front前置 I/O | 4 x (3+1) 2700W Platinum redundant power supply unit 1 x UID button with LED 1 x System Reset Button 12 x 2.5 inch SATA-3 6Gbps (8x SATA HDD / SSD + 4x NVMe ports) 2 x USB 3.2 Gen1 (USB Type A) 1 x VGA (DB15) 1 x IPMI Dedicated management port (RJ45 MLAN) 2 x HDD / System Fault LEDs |
| Mechanical： | |
| Power Supply 電源供應器 | 4 x Redundant 2700W CRPS 80 Plus Titanium PSU (3+1) |
| Cooling 散熱系統 | Air Cool: 8 x 8054 Dual Rotar Ball Bearing Fan for Front Air cooling 8 x 8054 internal Dual Rotar Ball Bearing Fan for internal Air cooling (Hot Swapping support) |
| Operation Properties 工作環境屬性 | Operating temperature: 10°C to 35°C Operating humidity: 8-80% (non-condensing) Non-operating temperature: -40°C to 60°C Non-operating humidity: 10%-95% (non-condensing) |
| Product Dimensions 產品尺寸 | L x W x H 90cm (Depth) x 43.8cm (Width) x 26.4cm (Height) |
| Product Weight 產品重量 | N/A |
| Miscellaneous： | |
| OS Compatibility 作業系統相容性 | Windows Server 2022 / 2019 (x64) Red Hat Enterprise Linux 9.2 / 9.1 / 9.0/ 8.7 /8.6 (x64) SUSE® Linux Enterprise Server 15 SP4 (x64) Ubuntu 22.04 LTS (x64) VMware ESXi 8.0 / 7.0 Update 3i Citrix Hypervisor 8.2.0 3i Citrix Hypervisor 8.2 LTSR CU1 |
| TPM 可信賴平台模組 | On-board TPM 2.0 Hardware Root of Trust (Optional) |
| Contents 包裝內容物 | 1 x AGS-6220V2 6U Rackmount System 2 x CPU heatsinks 2 x CPU Package Carriers 1 x L-shape Rail Kit 4 x CRPS (Pre-installed) 16 x System Cooling fans (Pre-installed) 4 x C19 to C20 Power cord adapter cables CPU and Memory (SKU option) Internal Storage device (SKU option) Rear Panel Storage device (SKU option) |
| Available SKU： | |
| Available SKU 可選購型號 | N/A |
